ARTÍCULO ORIGINAL/ORIGINAL  ARTICLE

Definition of Agricultural Management Units in an Inceptisol of the Casanare Department (Colombia)

Definición de Unidades de Gestión Agrícola en un Inceptisol del departamento de Casanare Colombia

Definição de Unidades de Gestão Agrícola em um Cambissolo do departamento Casanare (Colômbia)

Ricardo A. Peña - Venegas1, Yolanda Rubiano - Sanabria2,  Andrés J. Peña - Quiñones3

1          Docente  de la Facultad de Ciencias Agropecuarias, universidad  de La Salle, Yopal, Casanare.

2          Profesor Asociado de la Facultad de Agronomía, Universidad  Nacional  de Colombia,  Bogotá.

3          Investigador de la disciplina de Agroclimatología  – CENICAFÉ, Chinchiná, Caldas. Email: [email protected]

Recibido: Marzo 20 de 2013          Aceptado: Julio 26 de 2013

Abstract

Sixty-four representative samples of the 20 cm of shallow soil were taken in an Oxic Dystrudept  of the Eastern Mountain  Ridge foothills (Casanare, Colombia), on a 58-hectare farm using a nested  sampling  of four levels. The measured properties correspond to those that determine crop yields. The principal components technique was used for data analysis.  Thus, we generated a variable to classify soil with a comprehensive approach called First Principal Component (PC1), which explained 78% of the variation found in the data of the properties that affect specifically crop production. PC1 proved to be a regionalized variable and interpolated via Kriging on the map of the farm. The positive and negative values of this new variable (PC1) determined the UMH for the establishment of commercial crops in the farm.

Key words: Variability, Soils, Principal Component Analysis, Site-Specific Management

Resumen

En un Oxic Dystrudept  del piedemonte de la Cordillera  Oriental  (Casanare,  Colombia),  en una finca de 58 hectáreas, se tomaron  64 muestras representativas de los 20 cm superficiales del suelo utilizando un muestreo anidado de cuatro  niveles. Las variables  medidas  corresponden a aquellas  que determinan los rendimientos de los cultivos.  La técnica  utilizada  para  el análisis de los datos  fue la de componentes principales; en ese sentido,  se generó una variable  para clasificar el suelo con un enfoque  integral, llamado  Primer Componente Principal  (PC1), la cual explicó  el 78% de la variación  encontrada en los datos de las variables  que inciden de manera  específica  sobre la producción de cultivos.  El PC1 demostró  ser una variable  regionalizada y se interpoló  vía Kriging sobre el mapa de la finca. Los valores positivos y negativos de esta nueva variable (PC1) determinaron las UMH con miras al establecimiento de cultivos comerciales dentro de la explotación.

Palabras clave: Variabilidad, Suelos, Análisis de Componentes Principales, Manejo por Sitio Específico

Resumo

Num Oxic Dystrudept de piedemonte da cordilheira Oriental  (Casanare, Colômbia) numa fazenda  de 58 hectares, foram tomadas 64 amostras representativas dos 20 cm superficiais  do solo utilizando uma amostragem aninhada de quatro  níveis. As variáveis medidas correspondem a aquelas  que  determinam os rendimentos das culturas.  A técnica  utilizada  para a analise  dos dados foi de dos componentes principais,  nesse sentido de gerou uma variável para classificar o solo com enfoque  integral, chamado Primeiro Componente Principal (PC1), a qual explicou  o 78%  da variação  encontrada nos dados das variáveis que incidem de maneira  especifica sobre a produção de cultivos. O PC1 demostrou ser uma variável regionalizada e foi interpolada via Kriging sobre o mapa da fazenda. Os valores positivos e negativos desta nova variável (PC1) determinaram as UMH para o estabelecimento de culturas  comerciais dentro da exploração.

Palavras chave: Variabilidade, Solos, Analise de Componentes Principais,  Manejo por Sitio Específico.

Introduction

There are many elements, components and variables that need to be known for making decisions in agricultural enterprise.  Good decisions can only result from an appropriate analysis and interpretation of data, turn- ing it into information, which is turn into action (Wino- grad et al., 1998).  Therefore, the basis of information that can be turned into action  to increase  competitiveness and  sustainability of farms is knowledge of soil resources  through  the analysis of spatial and temporal distribution  of physical and chemical characteristics.

Precision agriculture allows the use of a wealth of information to turn it into action.  It definies localized management practices based on the spatial variability of soil, Variation affects the productivity  of crops is a followed premise (Schepers  et al, 2004,  Cox et al, 2003).  This means that it is necessary to know the variability patterns and their magnitude, in order to implement  management differentiated by specific sites, it is necessary to know the variability patterns and their magnitude, which can be studied through geostatistics that allow mapping and defining homogeneous areas. The area of the great- est  development in  precision   agriculture   site-specific nutrient  management, also  called  “variable  rate  technology,” which  corresponds to the variable  application of fertilizers doses according to the fertility level of each sector within the field. This means that the work is not necessarily carried out with a single dose of fertilizer, but with as many doses as significantly homogenous ar- eas exist in the exploitation (Ortega & Flores, 1999).

This technology allows  having a more  efficient management   of  crops,  not  only  from  the  economic but also  from  environmental  point  of  view  (Brouder  et al., 2001).  This paper evaluates the spatial variability of physical and chemical attributes of soil as a basis for developing a SSM (Site Specific Management) pilot project in the Llanos Orientales (Tauramena, Casanare).

Methodology

Characteristics of the study area

This research was conducted in the Orinoco region in eastern Colombia, on a farm of 58 ha, located in the village Jagüito, Tauramena municipality, south west of Casanare  department, about  5° 01’ north latitude   and 72° 45’ west longitude (Figure 1).

The study area is located on a relief zone slightly flat with dominant slope (1-3%), it corresponds, according to Holdridge, to a Tropical  Rain Forest (TRF) with an annual  average rainfall of 3000 mm (IGAC, 2002). The landscape corresponds to the foothills, the type of relief to a terrace range and the land form to the plane of the terrace range. The soils of this area were characterized according to USDA (2006), as Oxic Dystrudept, fine Loamy, kaolinite, underactive and isohyperthermic; moderately deep phase with 30% in the unit and deep phase with the other 70% approximately. They are characterized by having from a sandy loam to a clay loam texture, from very shallow to very deep effective depth limited in some areas by stoniness. They are well drained, with low base saturation and low capacity of cationic exchange. Stranglehold of quartz and kaolini- te was found in the sand and clay fraction, indicating a very low potential and current fertility (Peña, 2006).

Sampling and soil analysis

A nested  sampling was  used  with  the same mapping unit with four  levels  corresponding to the distances among samples,  i.e., 270,  80, 20 and  4 m for the spatial study of some physical  and chemical properties of soil. The distances were arbitrary, selected on the criteria described by Jaramillo (2002). The results of previous studies were developed by Ovalles & Rey (1995), Madero (2002), Lozano (2004) and Rubiano (2005), with some adjustments, due to the particular shape of the area. The experimental design  corresponds to a factorial  model  8x2x2x2  = 64  sites, where  the  first level (270 m) has eight repetitions, while  others  only had two levels (Figure 2). It was made based on the procedures established by the IGAC (1979), in each of the selected point’s determinations of soil parameters that affect crop yields, according to literature (Table 1)

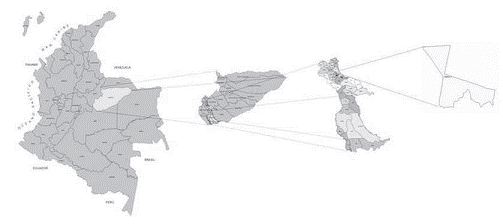

Figure 1. Location of the study area

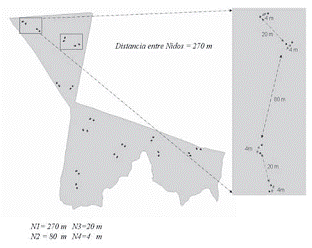

Figure 2. Design of nested sampling system

Statistical methods

Using  the  program   JMP v  5.1  (SAS Institute  Inc., 2001)  descriptive statistics were determined,  i.e., mean, standard deviation, variance, coefficient of variation, median,  skewness, kurtosis, minimum and maximum values of the variables under study. Subsequently, we analyzed the spatial behavior of each of them through geostatistical analyses using the program GS+ v 7.0 (Gamma Design Software, 2005),  which  found  half of the  maximum  distance between two sampling  points as a range to calculate semivariance.

In order to calculate the multivariate index used to determine homogeneous management units we used the PRINCOMP procedure of SAS v 8.1 (SAS Institute Inc., 2001). The first principal component has the quality to be a variable that is the best linear combination of the original variables (Table 1) and summarizes the maximum variability of the population under study.  After generating the multivariate  index, we proceeded to make the geostatistical analysis of the First Principal Component, including the interpolation (Kriging Spot) for the subsequent localization of the homogeneous zones with ArcGIS 9.1 (ESRI, 2004).

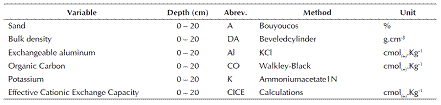

Table 1. Variable measured and used methods

Results and discussion

Descriptive statistics and geostatistical analysis

Table 2 shows the mean content of K in soil is low (0.11 cmol(+).Kg-1), compared with the amounts needed for good crop growth reported in the paper published by the ICA (1992). That is why the availability of this element could become a major constraint to agricultural production in this soil. However, this is the normal behavior of K and other cations in soils with high contents of quartz and kaolinite, which is associated to low values of CICE (2.58 cmol(+).Kg-1). This can be explained by the predominance of the sand fraction (A) that in these soils is greater than 60% (60.84%). Aluminum has high values (2.17 cmol(+).Kg-1) compared to the value of the CICE. Therefore, it is possible to state that the exchange complex is dominated by the dynamics of this element. The bulk density, with an average value of 1.51 g.cm-3, can be considered limiting for the normal root development in accordance with the reports of Hoyos et al. (2004), for light textured soils of the Eastern Plains of Colombia. The CO values (1.30%) are similar to that reported for soils in the high plains (Rubiano, 2005), alluvial soils and even the foothill soils of the Meta department (IGAC, 2000). It can be considered as an average value in this region.

The physical properties (A and DA) showed the lowest coefficients of variation (13.29 and 6.29). However, these variations may represent significant effects on crops, such as the high values of DA found (up to 1.66 g.cm-3) are strongly limiting for agriculture according to Lal (1994). Therefore, the management of these soils must be differentiated from soil management with low DA (1.16 g.cm-3) found in some sectors. Those sectors are related to high gravel content. The CO is the chemical attribute that has the highest coefficient of variation (45.40), with values ranging from 0.49% to 3.73% on the lot. It is explained by the different management that the study area has had. It has grown peanuts, but there are also natural pastures. The coefficient of variation for Al, K and the CICE is similar, largely explained by the soil mineralogy and the differential uses of land surface.

Table 3 shows the experimental semivariogram attributes for each of the properties analyzed in this work. This table also shows, out of all attributes analyzed, the spherical model was the best fit to the experimental models (physical and chemical). It was also reported by Oliveira et al. (1999) and Verges (2004) in another type of soils. K, Al and A have a ratio nugget/sill (Prop) that, according to Cambardella et al. (1994), represents a strong spatial dependence. DA, CICE and CO have a moderate spatial dependence. The relationship between semivariance of the attributes and sampling distance best fits the spherical model (higher r2) on those variables that have greater spatial dependence. In turn, these variables have high determination coefficients in cross validation (r2cv), unlike the variables that have moderate spatial dependence. This means that the maps generated for properties with high spatial dependence are more accurate than those generated for variables with moderate spatial dependence.

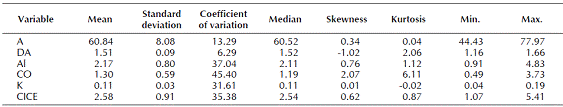

Table 2. Descriptive statistics

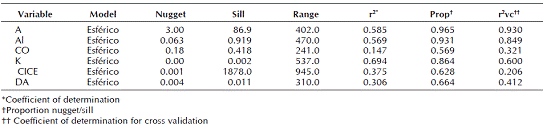

Table 3. Theoretical models fitted to the experimental semivariograms

Figure 3shows the interpolation of the variables analyzed via point kriging. There are sites on the farm where high values of an attribute match the highest (or lowest) values of other variables, as seen in the area marked with the circle. It shows the variables are strongly related.

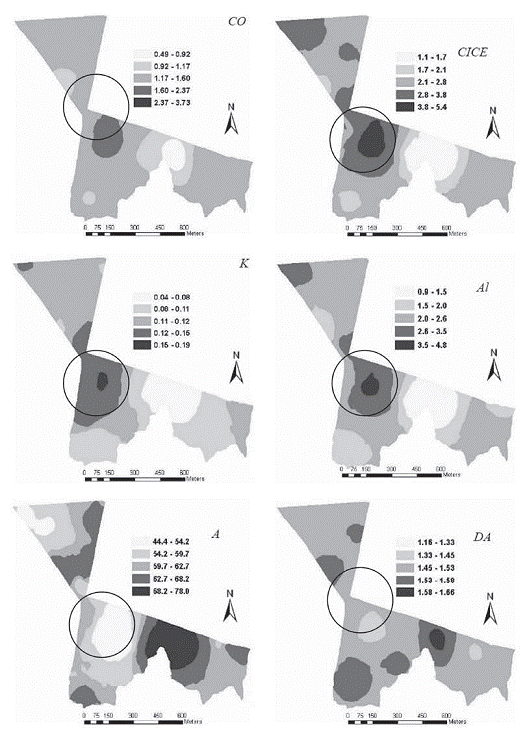

Figure 3. Maps of isolines for the analyzed variables

Analysis of Principal Components

Figure 4 shows every variable has a great weight  within the first principal  component (PC1). That is why it collects about 80% of the variance contributed by all the variables (Table 4). The same figure shows there is a strong positive relationship between variables Al and CICE. It is evidenced by the closeness of the vectors that identify each one. A similar behavior happens between Al and CO, but with a greater distance. The vectors for the variables A and Al are located in the opposite way. A and CICE indicates a strong negative relationship between these variables.

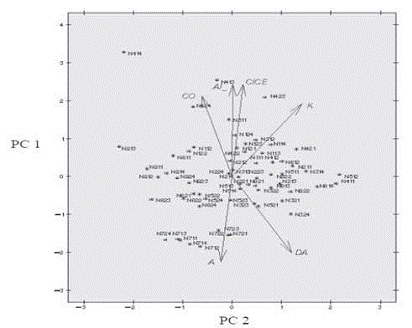

Figure 4. Focus Factor or Association BetweenVariables Analyzed

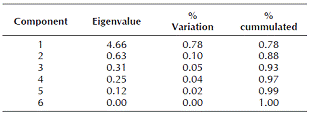

Table 4.  Eigenvalues,  variation percentage and  cumulative percentage by components chosen, provided by PCA

According to principal components analysis, PC1 was constructed taking into account weights of each variable in the global variance, so that PC1 is given by the following equation, where each variable is standardized:

Low values of PC1 indicate a high percentage of A and DA and low values for CICE, CO, Al and K. High values of PC1 are related to the opposite behavior (low values of A and DA and high values of CICE, CO, Al and K). Table 5 shows the proportion in which PC1 is explaining the behavior of each variable in the field, through the coefficient of determination. It indicates a very good estimate of r2 values between 0.58 and 0.95.

Table 5. Coefficients of determination (r2) of PC1 vs variables used to generate it

Generation of Management Units

The geostatistical  analysis  of PC1 shows  it has spatial dependence. It can be “mapped” reliably through Kriging (Figures 5 and 6). The estimate obteined by geostatistical  analysis  allows  to propose  management units identified  in the initial purposes  of this research.

Figure 5. PC1 semivariogram

Figure 6. Cross-validation of PC1

Figures 7 and 8 show two proposed management units (MU-1 and MU-2) based on the values of PC1.  MU-1, characterized by having PC1 values greater than zero (0), has an approximate area of 25 ha. It has soils with minor sand content (44 to 60%), lower bulk densities with values between 1.2 and 1.5 g.cm-3. They are con- sidered as non-limiting or moderately limiting accord- ing to the criteria set out by Lal (1994). The contents of CO, CICE, K and Al are the highest in the study area. The opposite behavior is observed in the variables of MU-2, characterized by PC1 values below  zero (0), resulting in high values of A and DA and lower for CO, CICE, K and Al. Percentage of A oscillates  between 60 and 74. DA’s is between 1.5 and 1.65 g.cm-3, the latter considered by Lal (1994) as a strong to a very strong constraint.  This unit has an approximate area of 33 ha.

Conclusions

The general idea of considering lots, plots, farms and regions as places where the soil is homogeneous has often led to wasted efforts in pursuit of information. It happens because the soil attributes characteristics are averaged and this datum is used as a basis for decision making.  The present study showed that the soil varies considerably in a single mapping unit, in the same region and in the same premises (smaller than 60 hectares). It is possible to distinguish two different management areas with a agricultural production view.

With DA as indicator, this unit does not have limits for the rooting of more crops.  That is why mechanization should be done with minimum tillage in order to preserve soil structure.  The CO levels indicate that the application of organic matter before planting should be in smaller amounts than in MU-2. However, its application is critical in both due to low values of CICE. MU-1, due to high Al values. To reduce saturation of this element will require greater amounts of chemical amendments, compared to MU-2.

MU-2 DA values show a strong constraint on pineap- ple rooting. Thus, a rigid tooth chisel should preferably be used to break the surface layer, taking care of over mechanization due to these soils susceptibility erosion. Irrigation is another aspect affected, compared with MU-1, as it surely must have greater frequency,  in smaller amounts, due to the higher content of sand in this management unit.

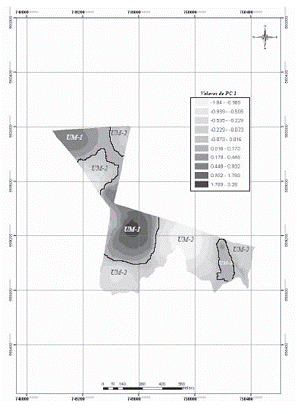

Figure 7. Isolines map of PC1 and proposed management units

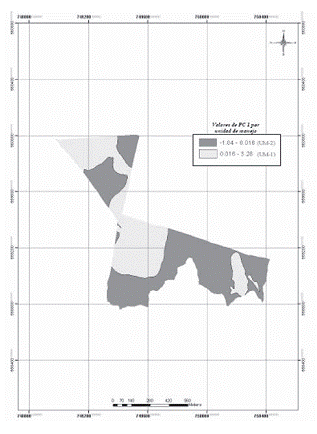

Figure 8.Management units map
